Timber is a valuable natural resource, and its role – particularly in the construction industry – is increasing. One objective of the EU timber regulation is to curb illegal timber trade. This is why the regulation requires wood-processing companies to ensure that timber can be traced to its origin along the entire supply chain. The numbering tags, RFID codes and simple color markings commonly used for identifying timber cannot ensure a reliable proof of origin because they are not tamper-proof. So far, alternative methods of marking logs and trunk sections have failed due to high costs and a lack of digitalization.

Tamper-proof identification: Cut surfaces as fingerprints

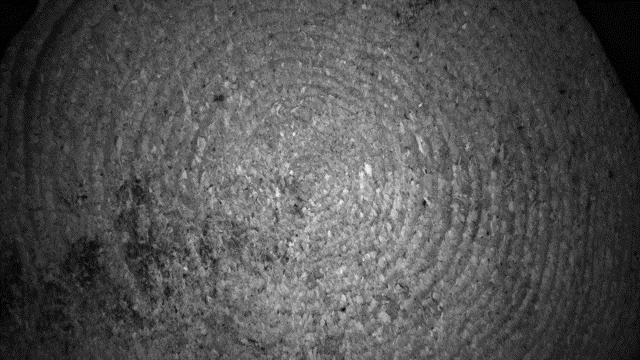

Fraunhofer IPM has been collaborating closely with the Forest Research Institute Baden-Württemberg (FVA) to develop a camera-based tracing method. The research project for the identification of logs and trunk sections has recently been concluded. The Track & Trace Fingerprint method uses the unique structures on cut surfaces like a fingerprint, meaning that no timber marking is required. High-resolution camera images of the cut surfaces are translated into a simple bit sequence, the fingerprint code. This code is matched with a unique ID and stored in a Cloud database. Tracking can thus be achieved by comparing new images of the same area with the corresponding bit sequence. This allows the tamper-proof identification of individual logs and trunk sections, even if the timber is mixed up during harvest and processing.

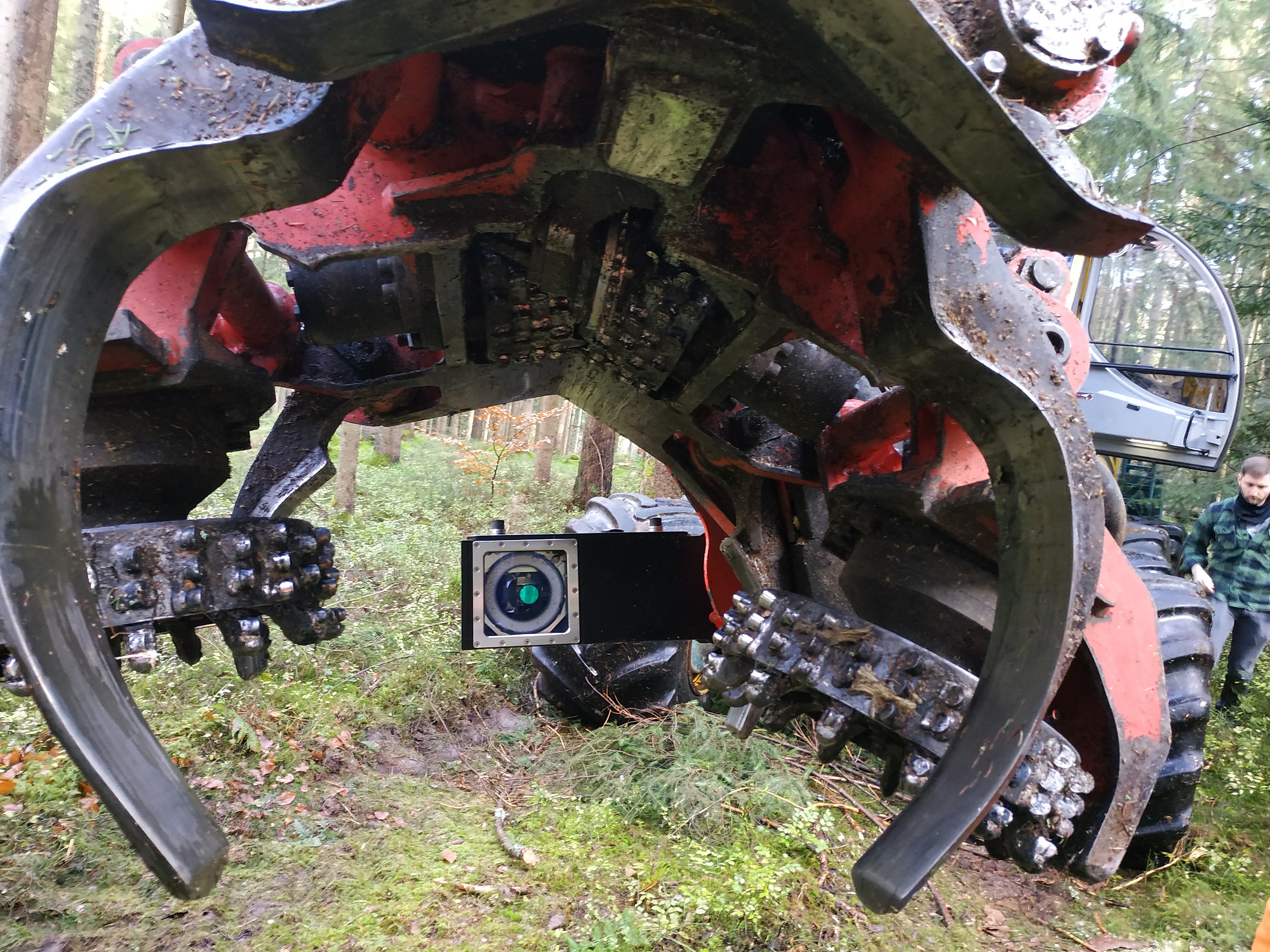

Three different camera systems have been developed for wood processing applications, each to suit specific lighting conditions: a system that is integrated in a forest harvester, a system for use in a sawmill and a hand-held system. There are two reasons why the creation of fingerprint codes generates a vast amount of data: first, the specific structure of the cut surface with knots, growth rings and rough surfaces, and second, the forest environment, which makes the reproduction of log positions impossible. This is why the images are pre-selected in a two-step process using a convolutional neural network (CNN).

High recognition rate

In a field study, the researchers could show that the fingerprint method is reliable, even in the rough environmental conditions in the forest and the sawmill. A total of 65 cut surfaces were recorded on the forest harvester, at the timber collection point and at the sawmill. The registered sections were then identified at the collection point and at the sawmill by new images being taken at each location respectively. The recognition rate between the forest harvester and the timber collection point was 98.5 percent, in other words the system failed to recognize only a single log. Between the forest harvester and the sawmill, and between the timber collection point and the sawmill, the recognition rate was 100 percent. In the future, the researchers will be working on making the method suitable for other types of wood and for applications along the entire timber processing chain.
